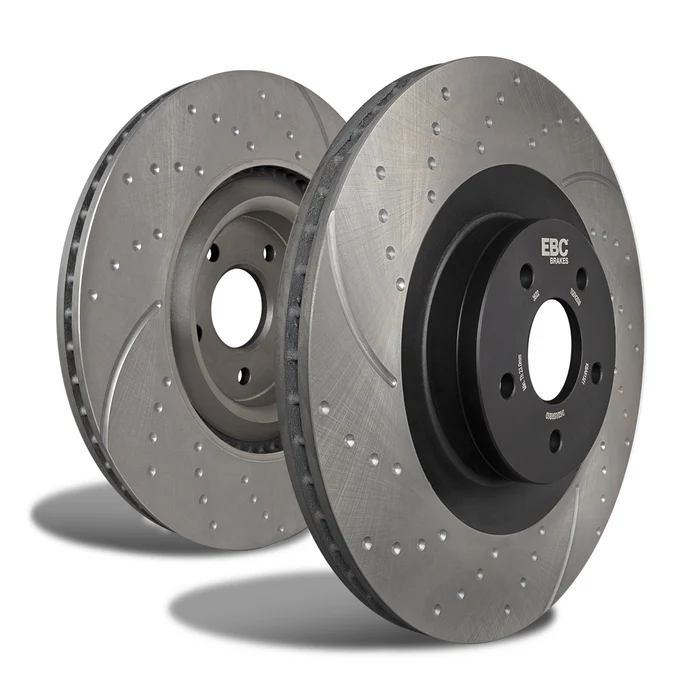

EBC GD Series Rotor

Uncompromised Quality and Durability

The commitment to performance starts with the materials and continues through the precise manufacturing process.

The EBC GD grooved and dimpled brake rotors are engineered to deliver the aggressive performance and aesthetic appeal of drilled rotors without inheriting their weaknesses. This advanced design ensures a safer, more responsive, and longer-lasting braking experience

The design features three wide-aperture grooves strategically cut into the braking surface. These channels function as continuous sweepers, efficiently venting away hot gases and microscopic debris generated at the pad-rotor interface.

• This crucial venting action significantly reduces the onset of brake fade, maintaining consistent stopping power during aggressive or sustained braking.
• It also prevents trapped particles from causing ribbing or scoring on the rotor face, preserving the life of both the rotor and the brake pads.

In addition to the grooves, the rotors incorporate multiple dimples for further gas expulsion. Crucially, these impressions do not penetrate all the way through the rotor faces.

• Cross-drilling creates inherent stress points where heat-induced cracks commonly originate—a familiar issue for drivers who push their vehicles hard.
• By using dimples instead of through-holes, EBC eliminates these localized stress risers, ensuring superior resistance to thermal cracking under extreme conditions.

The combined action of the grooves and dimples results in a sharper initial bite upon brake application, translating to a more immediate and confident response that is especially valuable for dynamic driving.

High-Carbon Alloy Construction

Like all EBC one-piece rotors, the GD series is cast using premium high-carbon G3000 alloy. This high-quality metallurgy provides:

• Excellent thermal capacity, allowing the rotor to absorb and dissipate high levels of heat.
• Superior resistance to warping and cracking, making them robust enough for rigorous track use.
• A dedication to high-quality materials means EBC never compromises performance or rotor life by offering low-carbon alternatives.

Precision Machining and Certification

Every rotor is finished using a sophisticated twin-turning process to guarantee virtually perfect parallelism.

• This precision machining minimizes the potential for Rotor Thickness Variation (RTV), the primary cause of unsettling brake judder (vibration) on the vehicle.
• EBC’s outstanding quality is recognized globally: they are one of the few aftermarket rotor manufacturers with both TÜV and R90 approvals, confirming compliance with stringent international standards and ensuring ADR compliance for legal road use in Australia.

Maximum Corrosion Protection

Each finished rotor receives a robust double-layer protective coating for extended service life:

1. A base Geomet® coating provides comprehensive protection against corrosion on all surfaces.
2. An additional advanced black anti-corrosion spray is applied to the visible, non-contact areas to aggressively ward off
